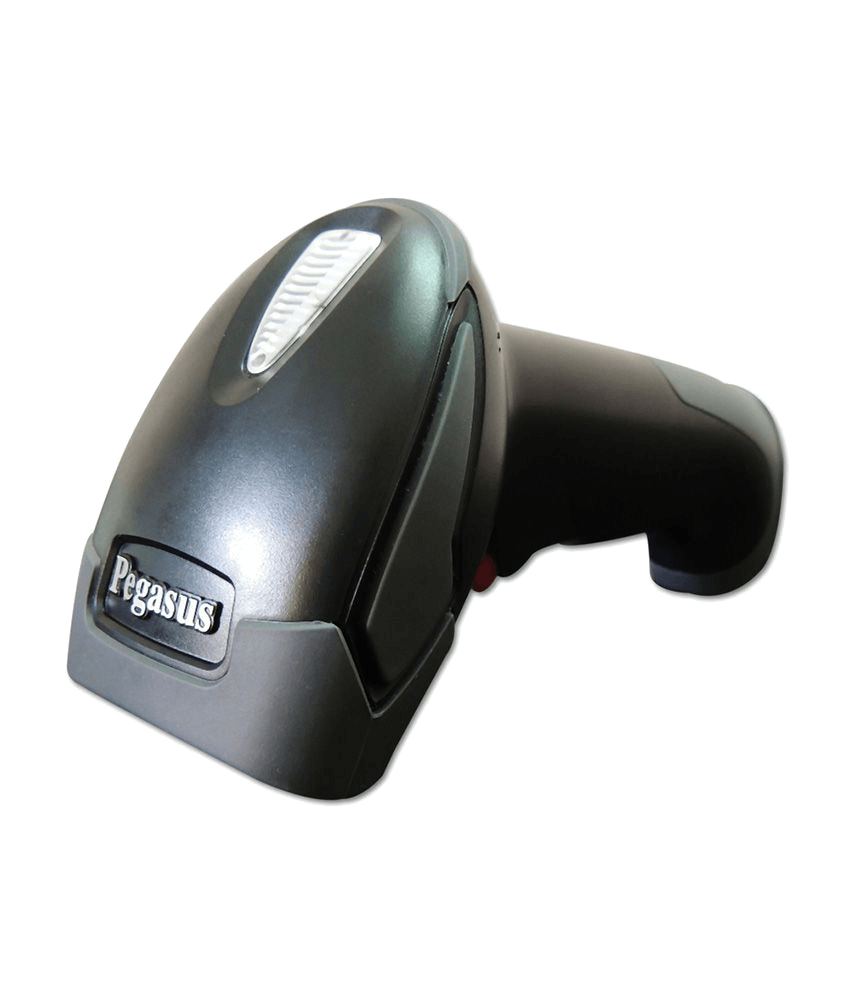

Pegasus pS6920

Scan Speed

200 Scans/sec

Light Source

Visible Laser Diode 670 -10nm

Resolution

0.10mm (4mil)

PCS value

45% or more

Skew Angle

?45?

Pitch Angle

?60

Scan Distance

(PCS 90% code 39) 10-70cm (PCS 90%)

Host Systems Interface

KB wedge, RS232 and USB (HID) interface

Manner of scan starting

Manual; sensor scan

Manner of using

Portable or setting in bracket

Decodable Capability

Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93, Code 11, Codabar/NW7, All UPC/EAN/JAN code (EAN-13, EAN-8, UPC-A, UPC-E, EAN-128),

Interleave 2 of 5, STD 2 of 5, Industrial 2 of 5, matrix 2 of 5, Chinese Postage Code, IATA, MSI/PLESSY, Italian Pharmacy Code, Telepen.

Option decodable

RSS-14, RSS Limited, RSS Expanded

Voltage

5V DC ?5% from Host Computer

Operation Current

180mA

Stand-by Current

70mA

Operating Temperature

32 to 105 ( 0 to 50 )

Storage Temperature

-40 to 140 (-26 to 60 )

Humidity

10% to 90% RH

Case Material

ABS Rubber

Dimension

L:166mm W: 66mm H: 86mm

Weight

130g

Cable

1.8m coiled or straight Cable
